RobertoLoading Calculation

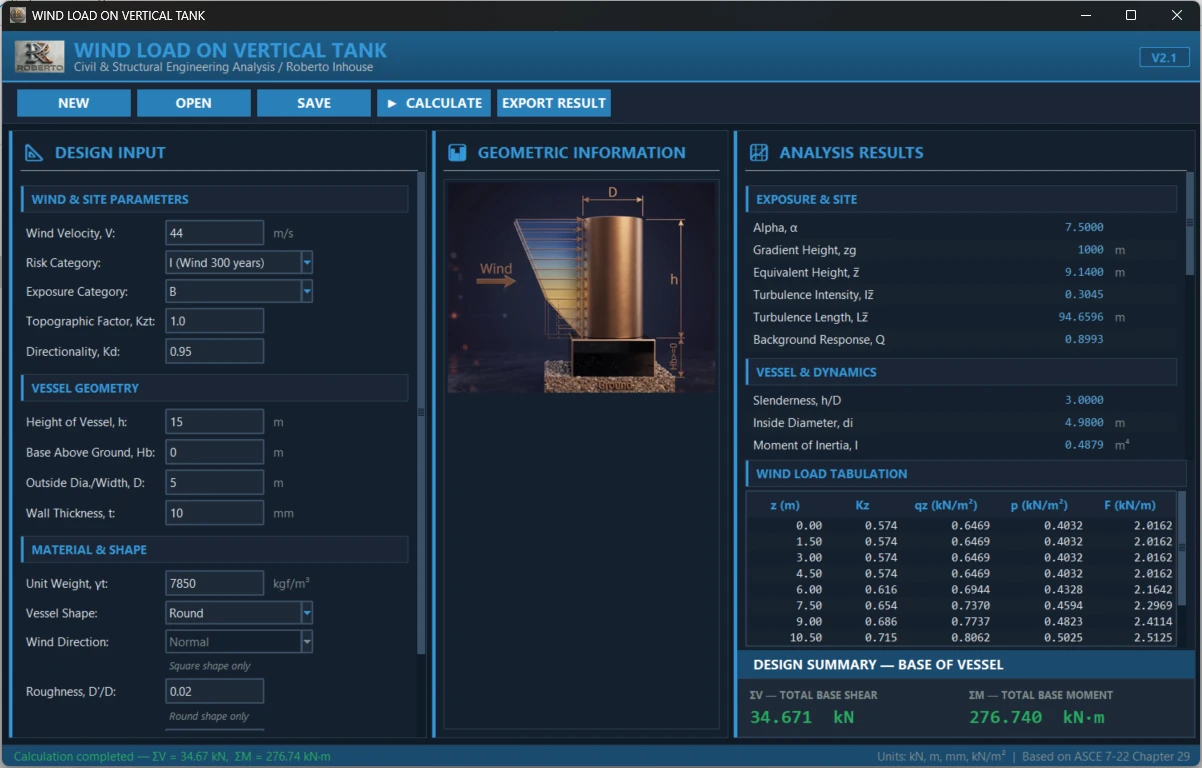

Wind Load on Vertical Tank
Wind design loads for ground-supported vertical tanks, vessels and stacks per ASCE 7-22 Chapter 29.
⤢
Key features
- Per <b>ASCE 7-22 Chapter 29</b> for cylindrical structures
- Supports <b>round, hexagonal, octagonal and square</b> shapes
- <b>Automatic rigid vs flexible classification</b> from the natural frequency (1 Hz threshold)
- Gust effect factor G: simplified, detailed rigid, and Gf for flexible structures
- <b>Automatic force coefficient Cf</b> based on shape, surface roughness and D×√qz
- <b>Elevation-by-elevation</b> wind load table with base shear and overturning moment

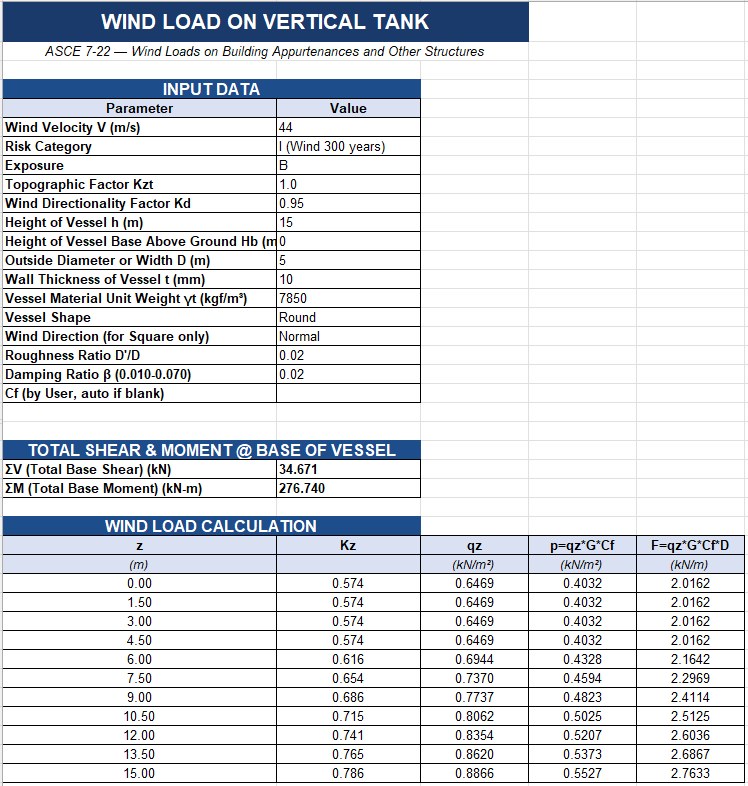

- Excel export and save/open project (.json)
System requirements
Windows
