RC Structural Design

RC Design Output — SAP2000

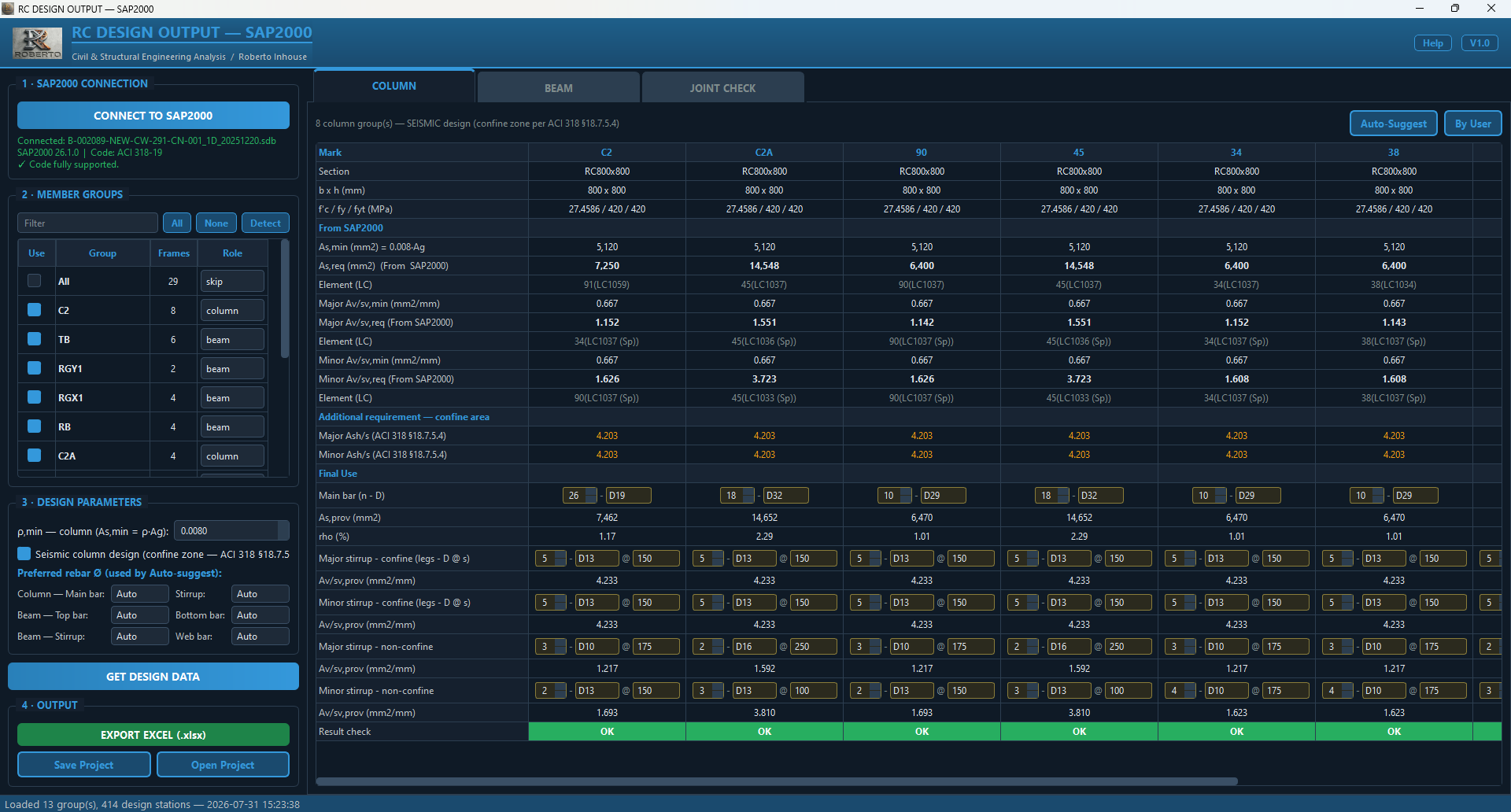

Connects live to a running SAP2000 model, pulls concrete frame design results and turns them into a complete rebar schedule per member group — with live OK/NG checking and a polished Excel report.

RC Design Output — SAP2000 ⤢
screenshot 1screenshot 2screenshot 3screenshot 4

Key features

  • Live SAP2000 connection
  • Section size, f'c, fy, fyt, cover...

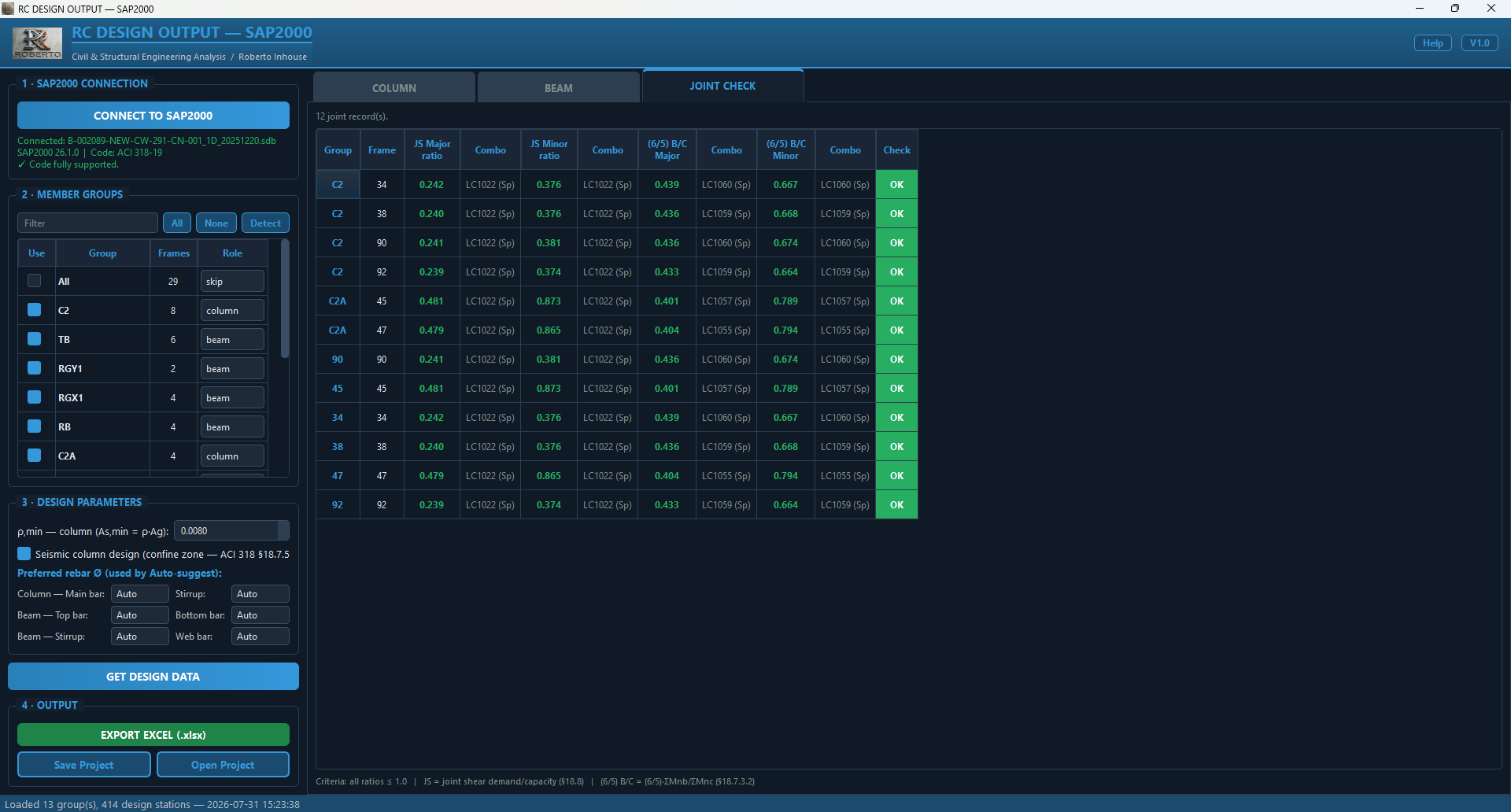

  • Joint check: joint shear and (6/5) beam/column capacity ratios for seismic frames
  • <b>Auto rebar suggestion</b> the moment data arrives

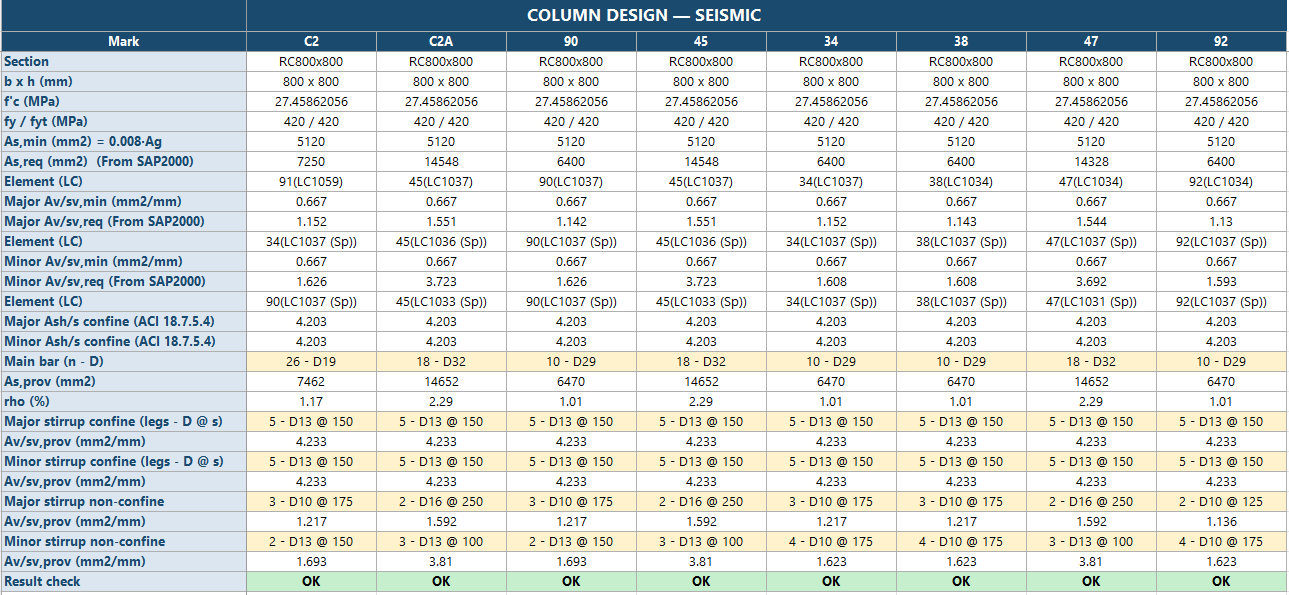

  • Excel export (.xlsx) mirroring the familiar legacy sheet layout, including raw station data
  • Save/open project (.rcdproj) — tweak rebar and re-export later <b>without SAP2000 running</b>

System requirements

Windows / SAP2000
