RC Corbel Design
Design of reinforced-concrete corbels and brackets using the strut-and-tie model: primary tension reinforcement, horizontal stirrups, shear-friction and bearing checks.
⤢
Key features
- Design by the <b>strut-and-tie model</b> for corbels under vertical and horizontal load
- Primary tension reinforcement and <b>horizontal stirrups</b> distributed over the corbel depth
- <b>Shear-friction</b> check at the corbel–column interface
- <b>Bearing</b> check at the support plate and geometric limit checks

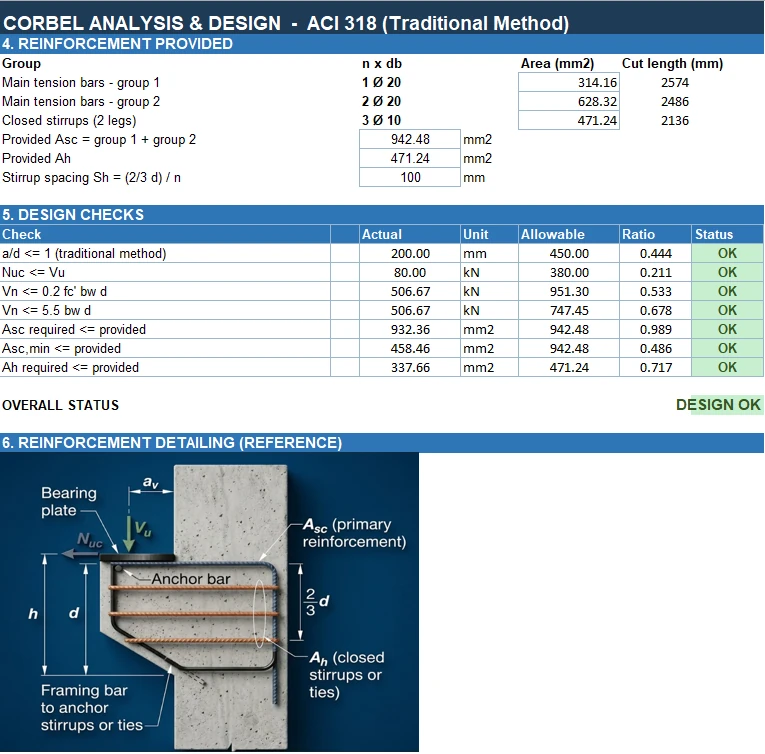

- Exports a calculation report
- SI units (kN, m, mm)
System requirements
Windows
