Octagonal Equipment Foundation Design

Octagonal foundations for vertical tanks, vessels and stacks: stability, bearing, pedestal and footing reinforcement, plus a piled option — per PIP STE03350, ASCE 7-22 and ACI 318-25.

Octagonal Equipment Foundation Design ⤢
screenshot 1screenshot 2screenshot 3screenshot 4screenshot 5

Key features

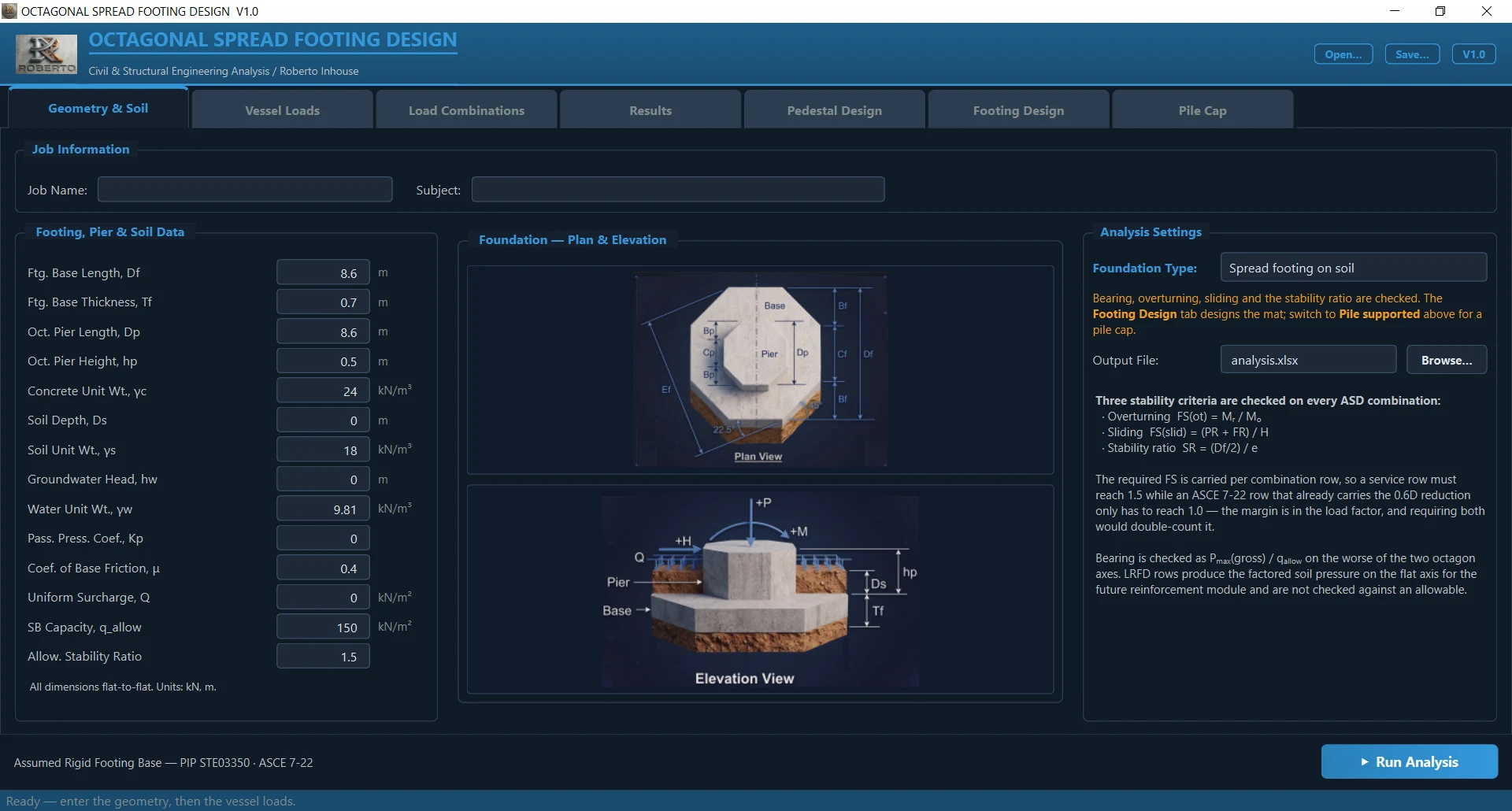

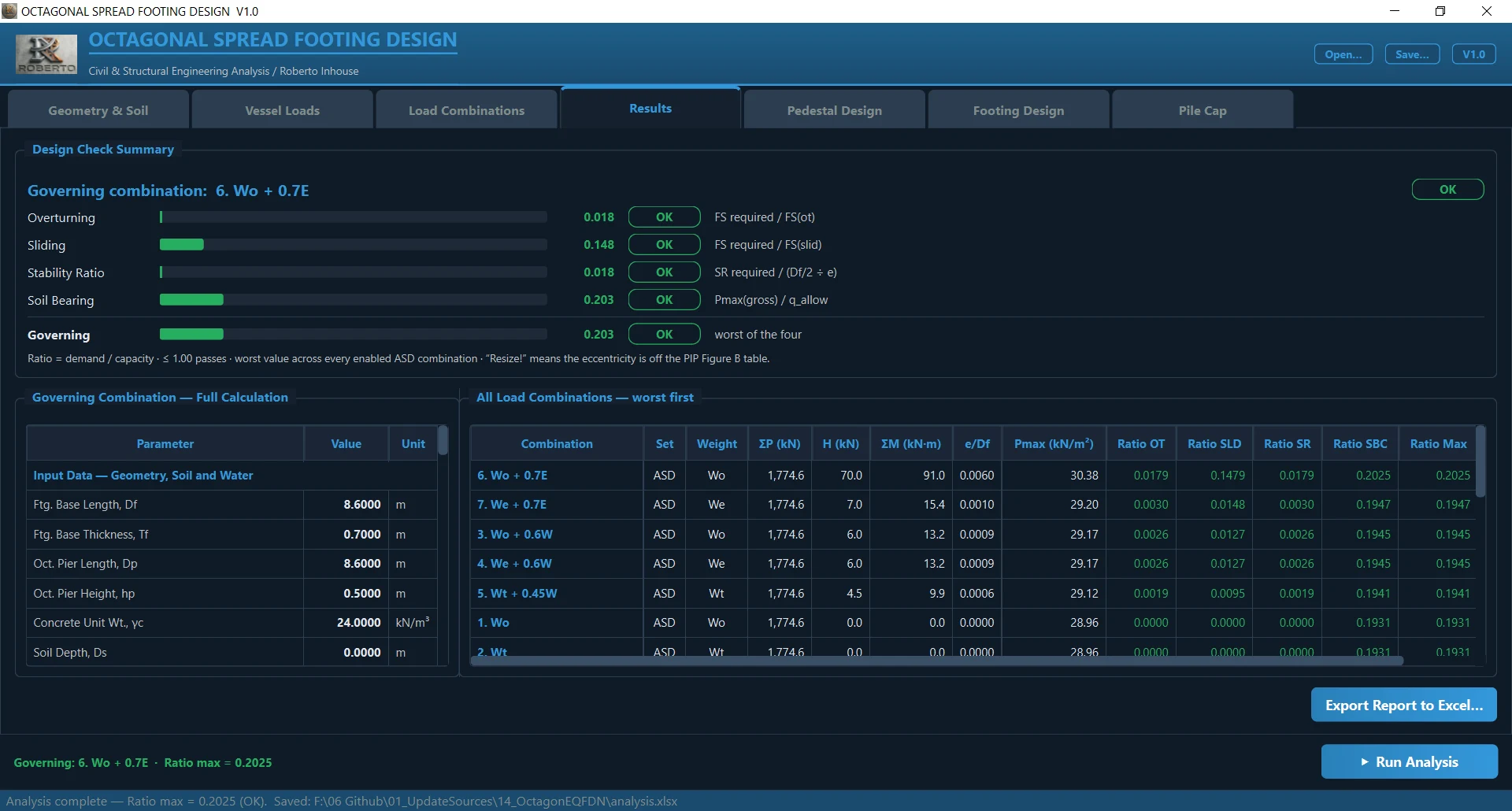

  • <b>Overturning, sliding, stability ratio</b> and <b>bearing pressure</b> per PIP STE03350
  • Direct entry of vessel loads: empty, operating and test weights, wind and seismic

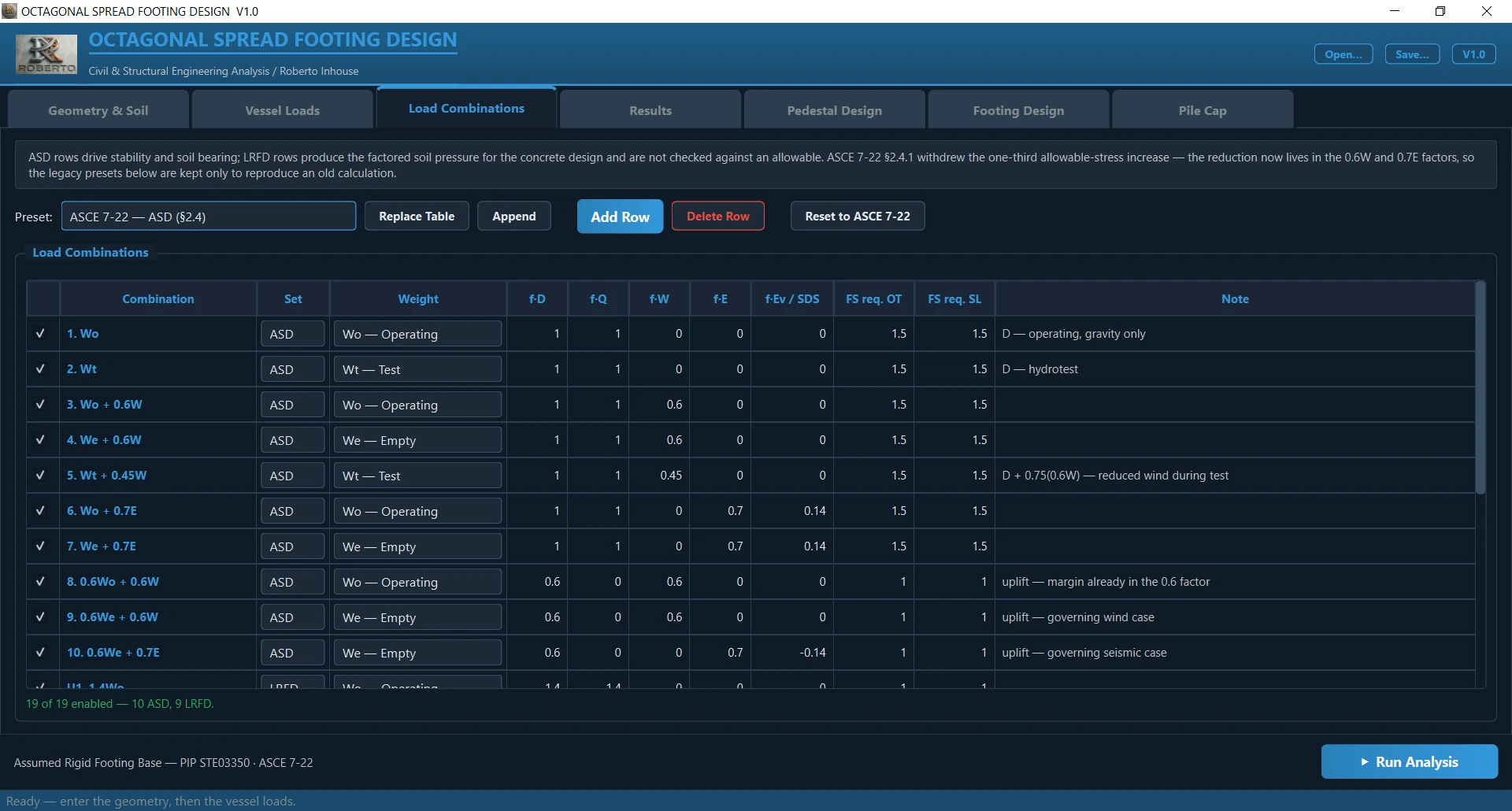

  • <b>ASCE 7-22</b> combinations (LRFD and ASD) in an editable table, with buoyancy

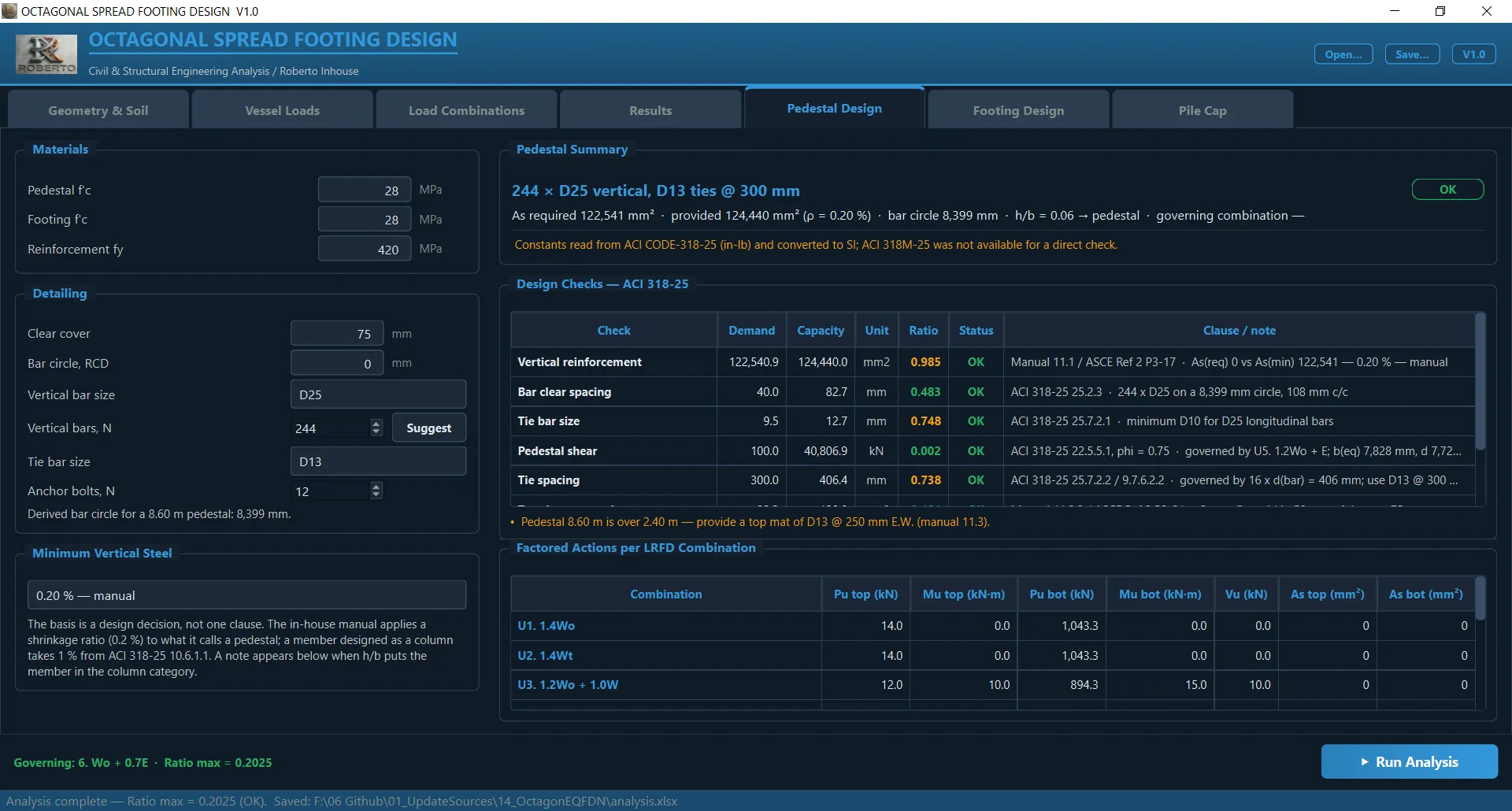

  • <b>Pedestal reinforcement</b>: vertical bars, ties and bearing at the base
  • <b>Footing design</b>: one-way and punching shear, flexure, development length
  • <b>Piled option</b>: piles on a circle, per-pile capacity and pile-cap design

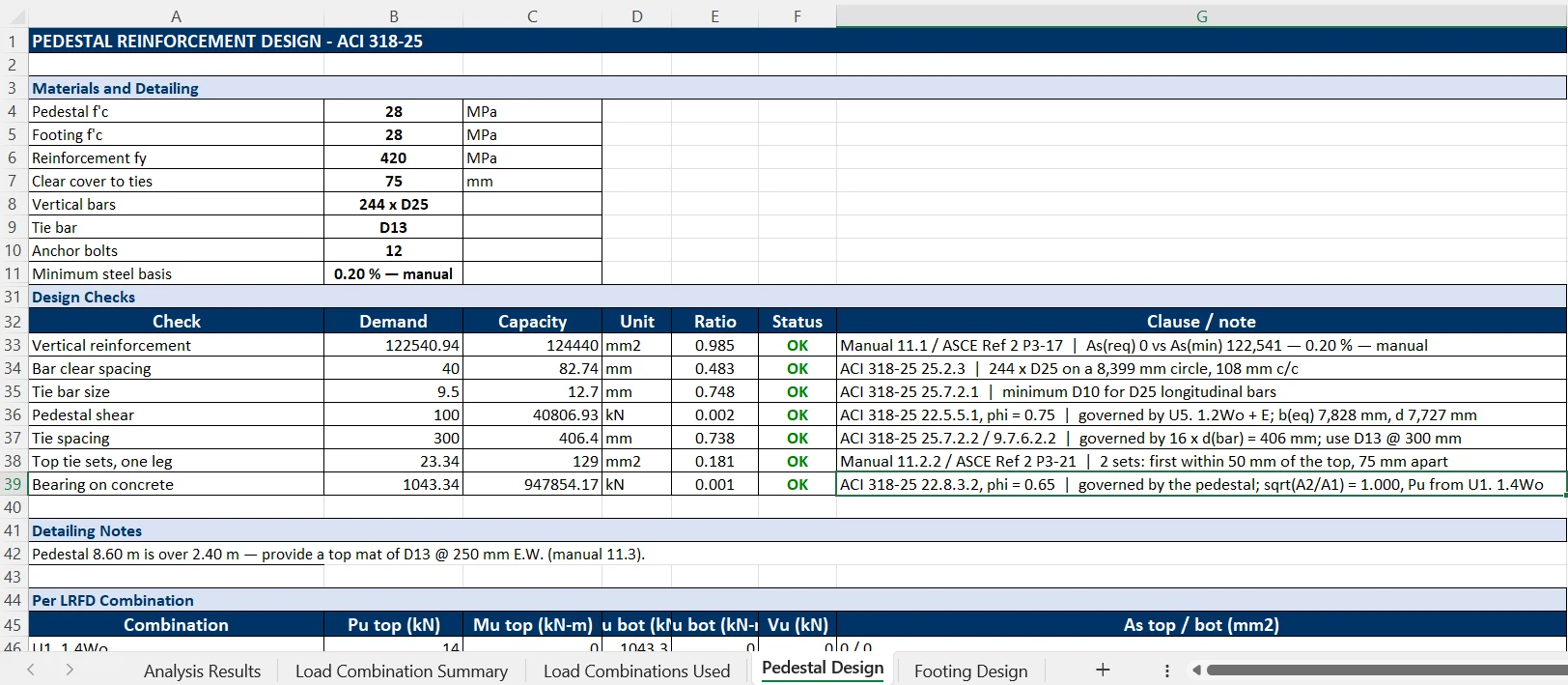

  • Save / open projects and export an Excel report
  • SI units (kN, m)

System requirements

Windows
