Concrete Slab on Grade Design

Analysis and design of concrete slabs on grade to Westergaard / PCA / ACI 360 / TM 5-809-12.

⤢

Key features

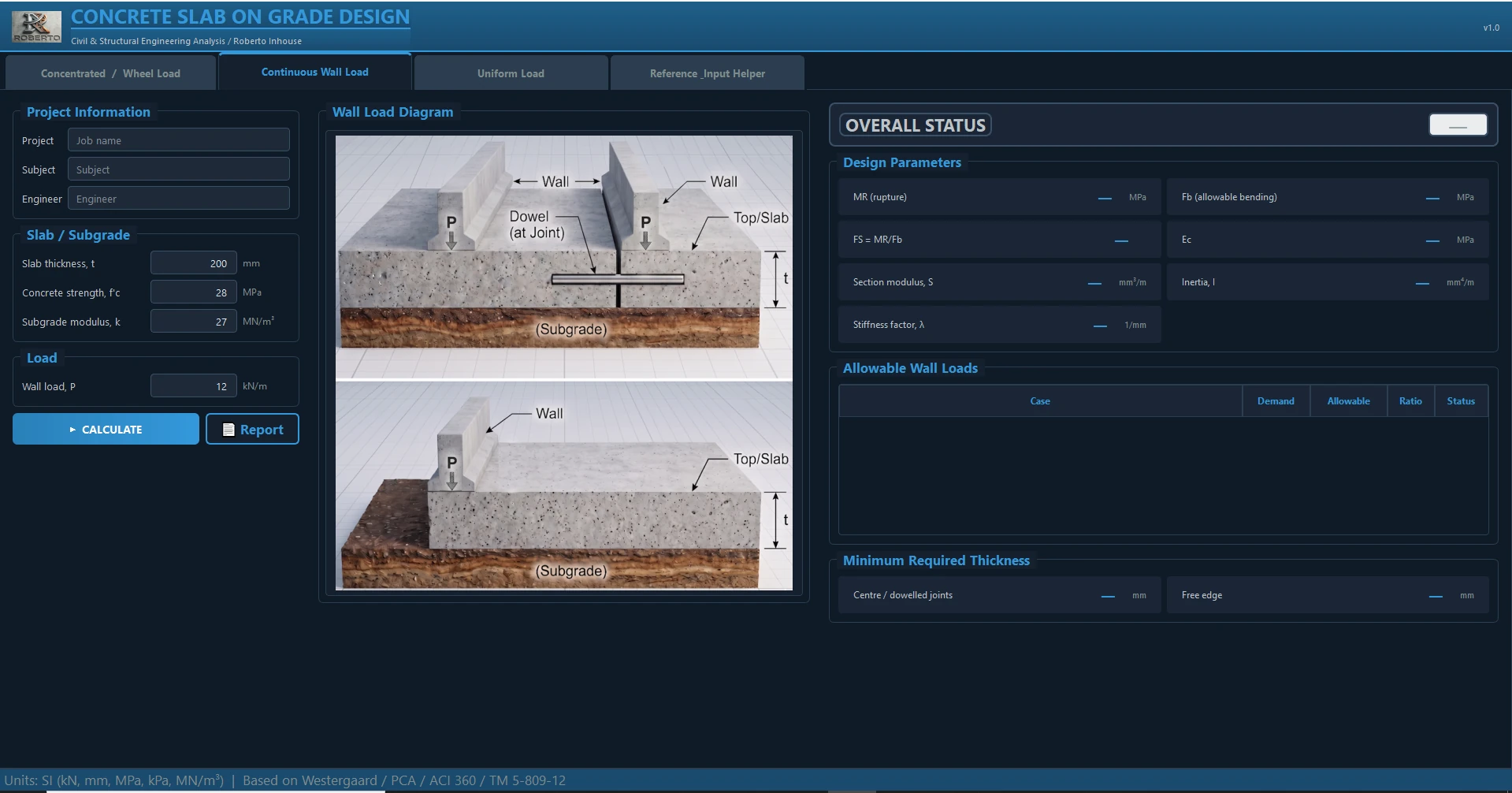

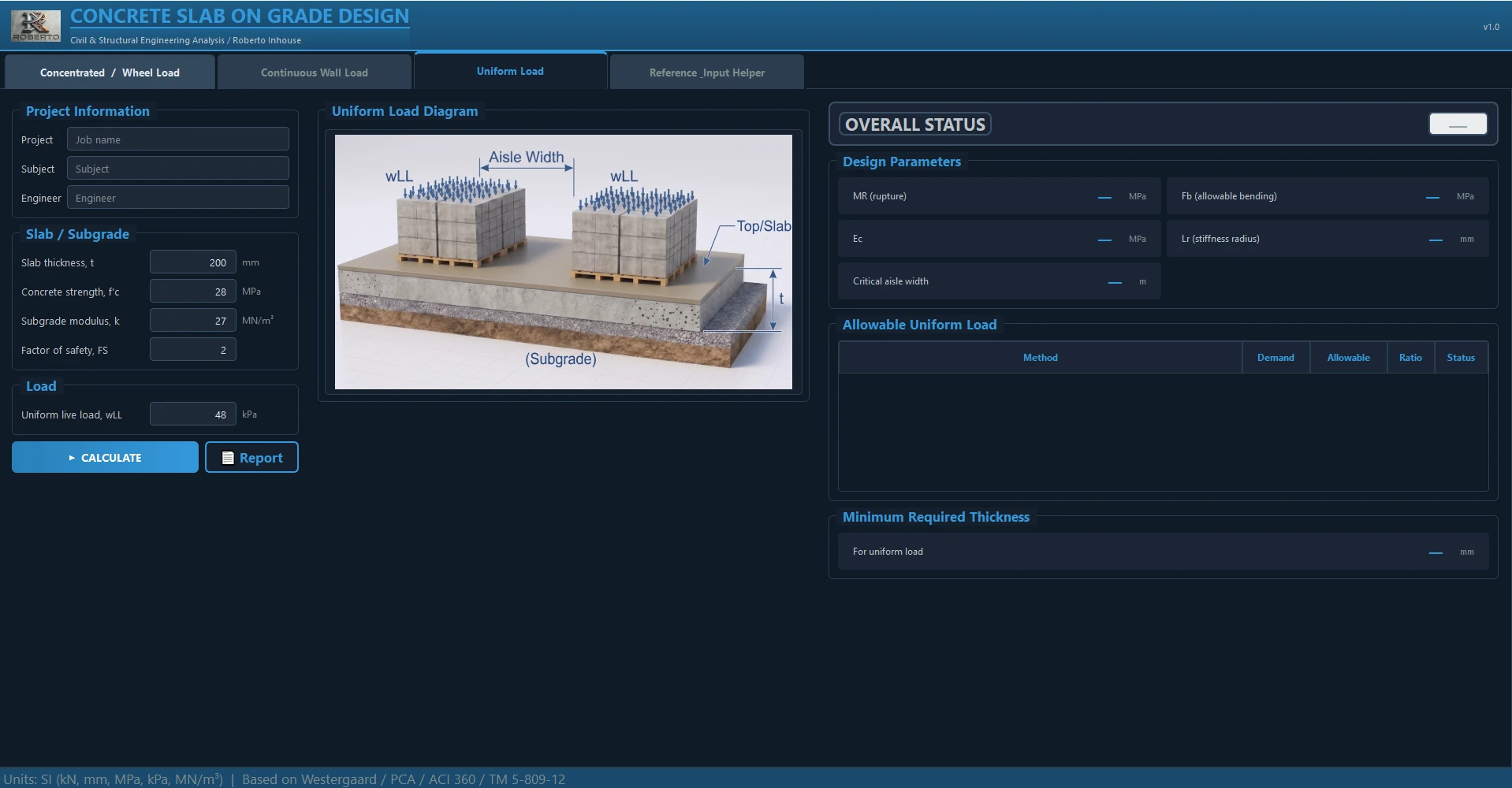

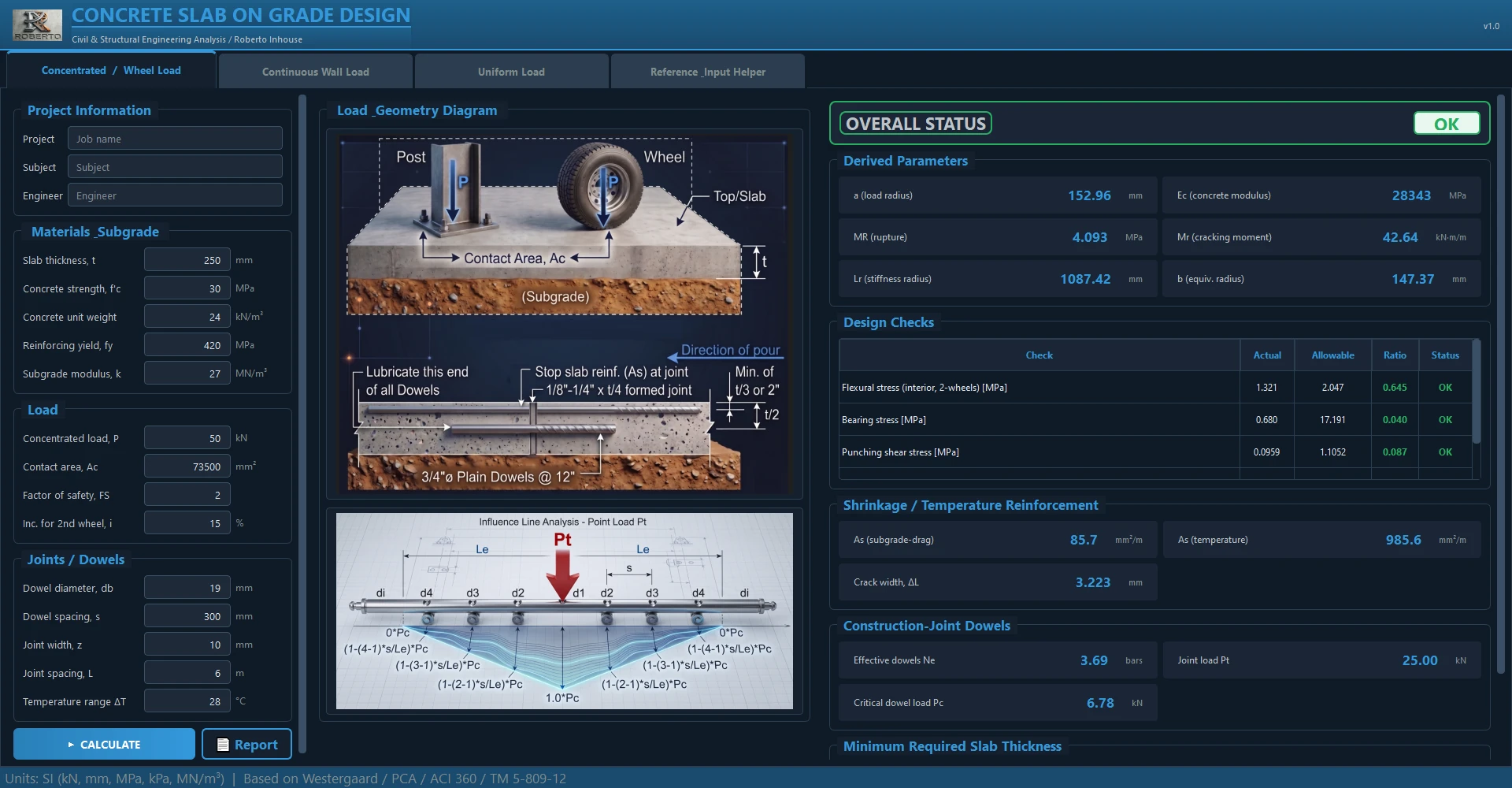

3 load cases: concentrated/wheel, continuous wall, uniform load
Flexure, bearing, punching shear and dowel bearing checks
Shrinkage/temperature reinforcement and crack-width check
Automatic minimum slab-thickness search for each load case

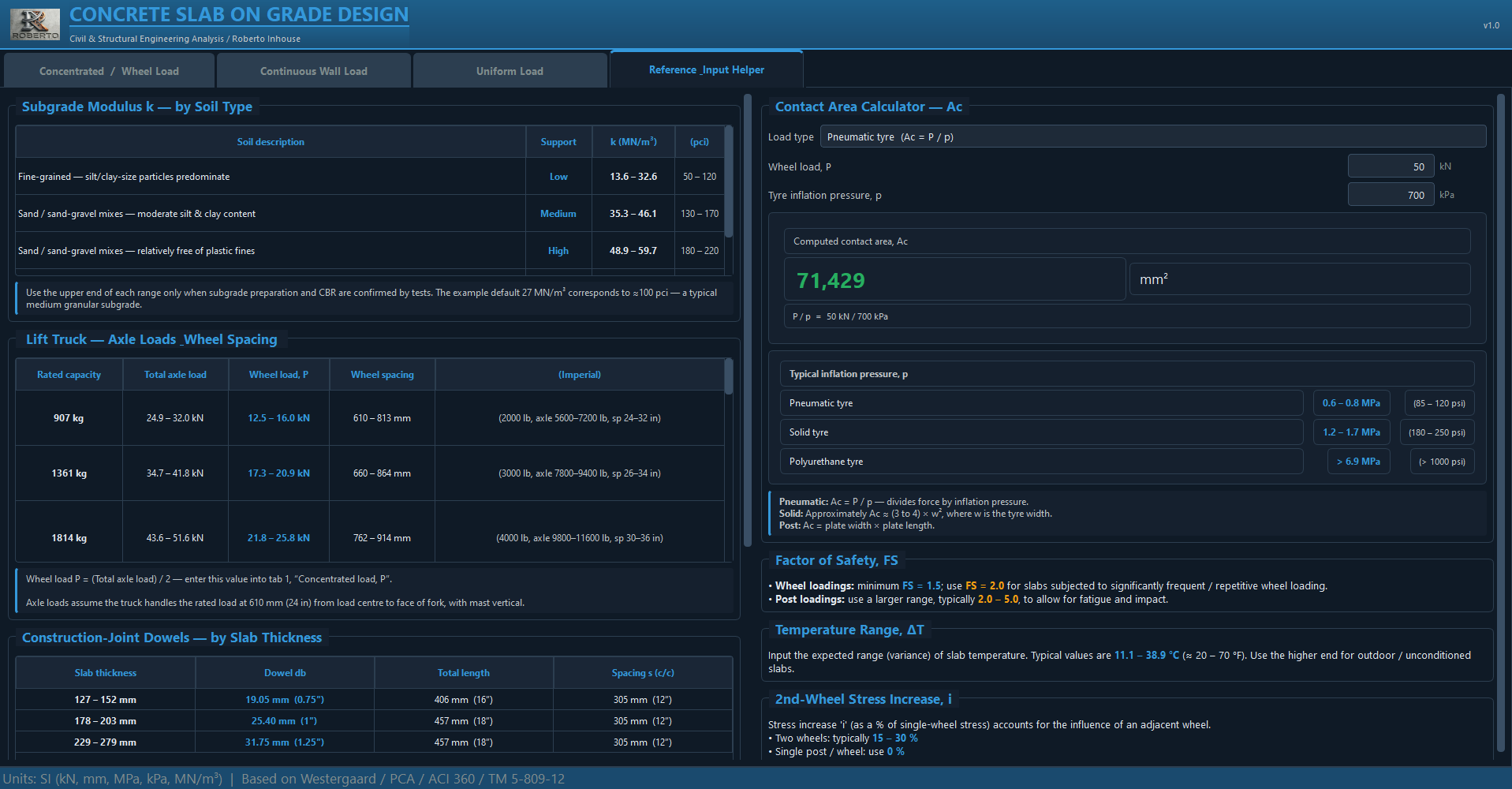

Reference tab: subgrade k by soil, lift-truck loads, dowel selection, contact-area calculator

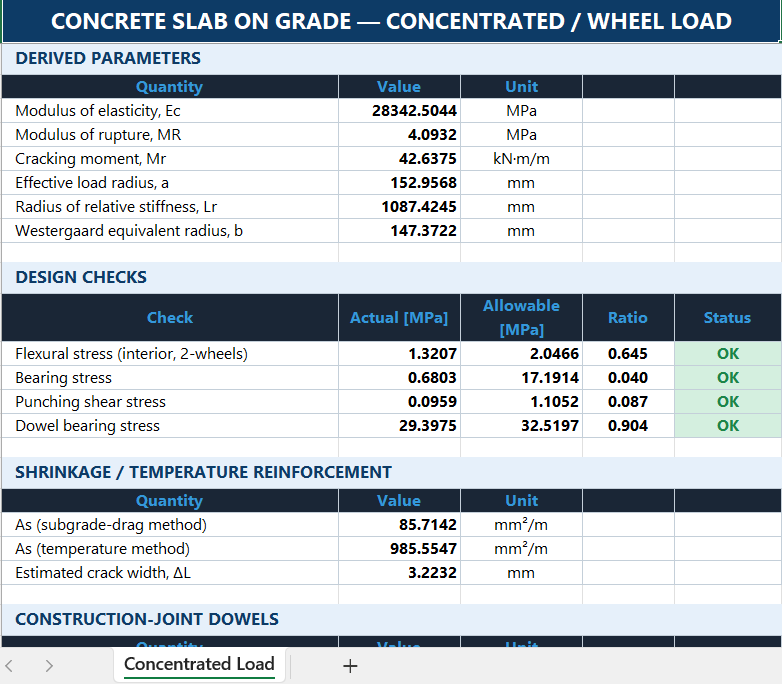

Export printable Excel (.xlsx) or HTML report

System requirements

Windows
