RobertoRC Structural Design
Embedded Plate Design
Design of plates cast into concrete: stud layout, tension–shear–interaction checks and concrete failure modes per ACI 318.
⤢

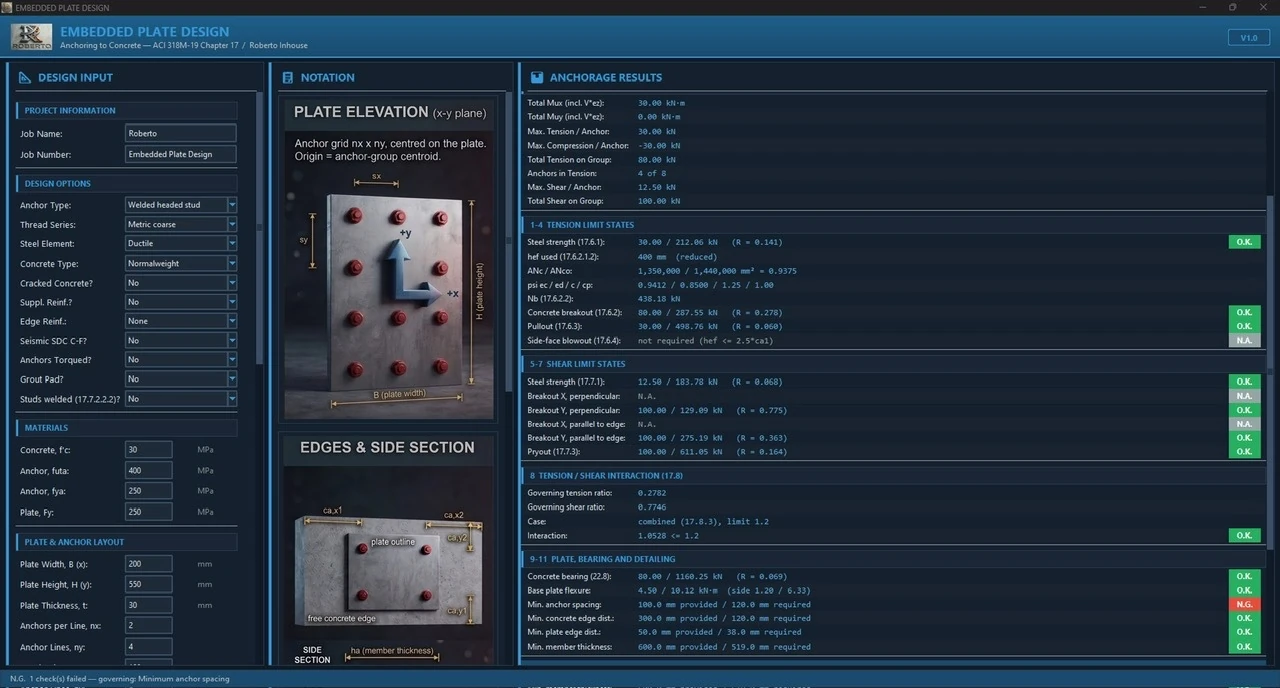

Key features

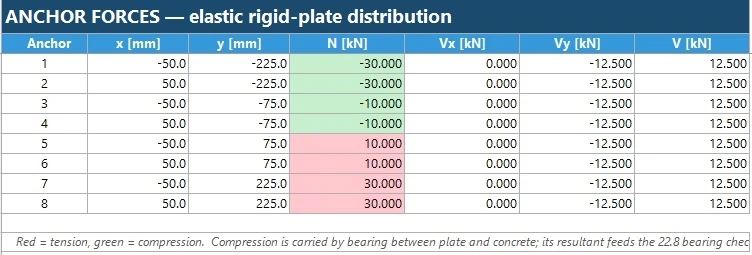

- Configurable stud layout with spacing and distance checks
- Stud checks in <b>tension, shear and tension–shear interaction</b>
- Concrete failure modes: <b>breakout, pullout and side-face blow-out</b>
- Plate thickness check for local bending under the applied load

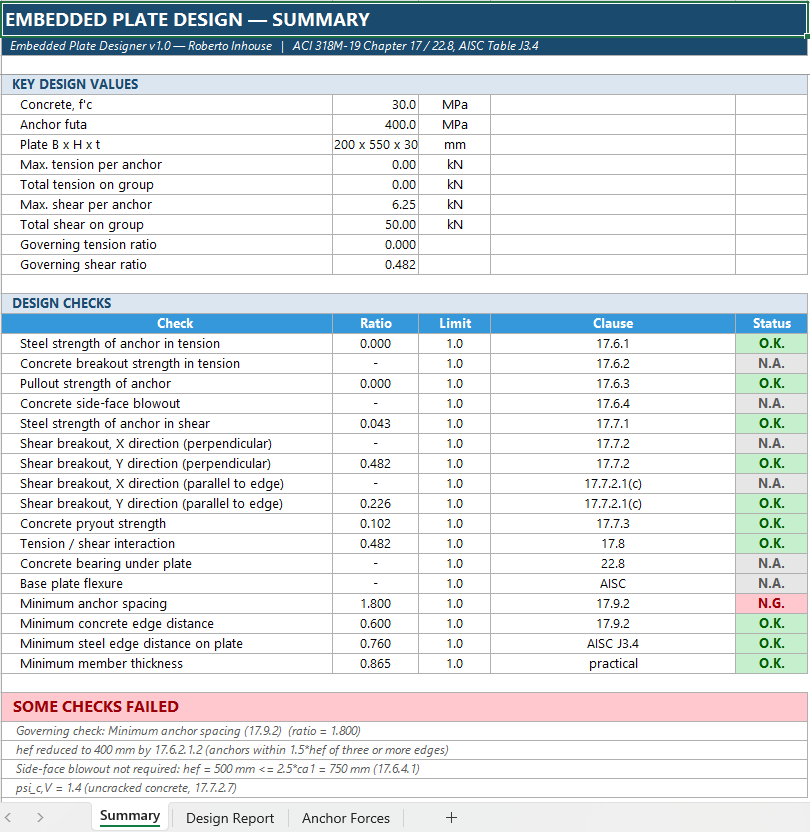

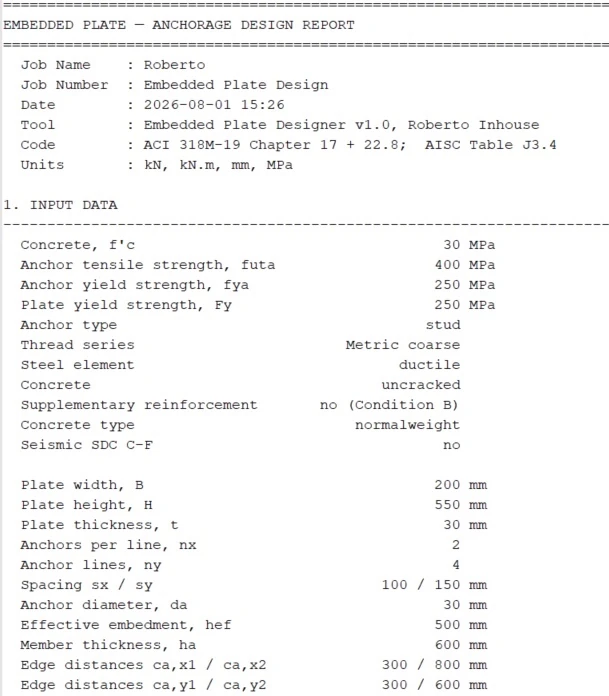

- Exports a calculation report
- SI units (kN, m, mm)
System requirements
Windows
