Base Plate Design (Hinge Type)

Hinged steel column base-plate design per AISC 360 / ACI 318.

Base Plate Design (Hinge Type) ⤢
screenshot 1screenshot 2screenshot 3screenshot 4screenshot 5screenshot 6

Key features

  • Auto-discovers every base plate in the SAP2000 model
  • Design per <b>AISC 360 / ACI 318M</b> for hinge-type bases (2 or 4 anchor bolts)

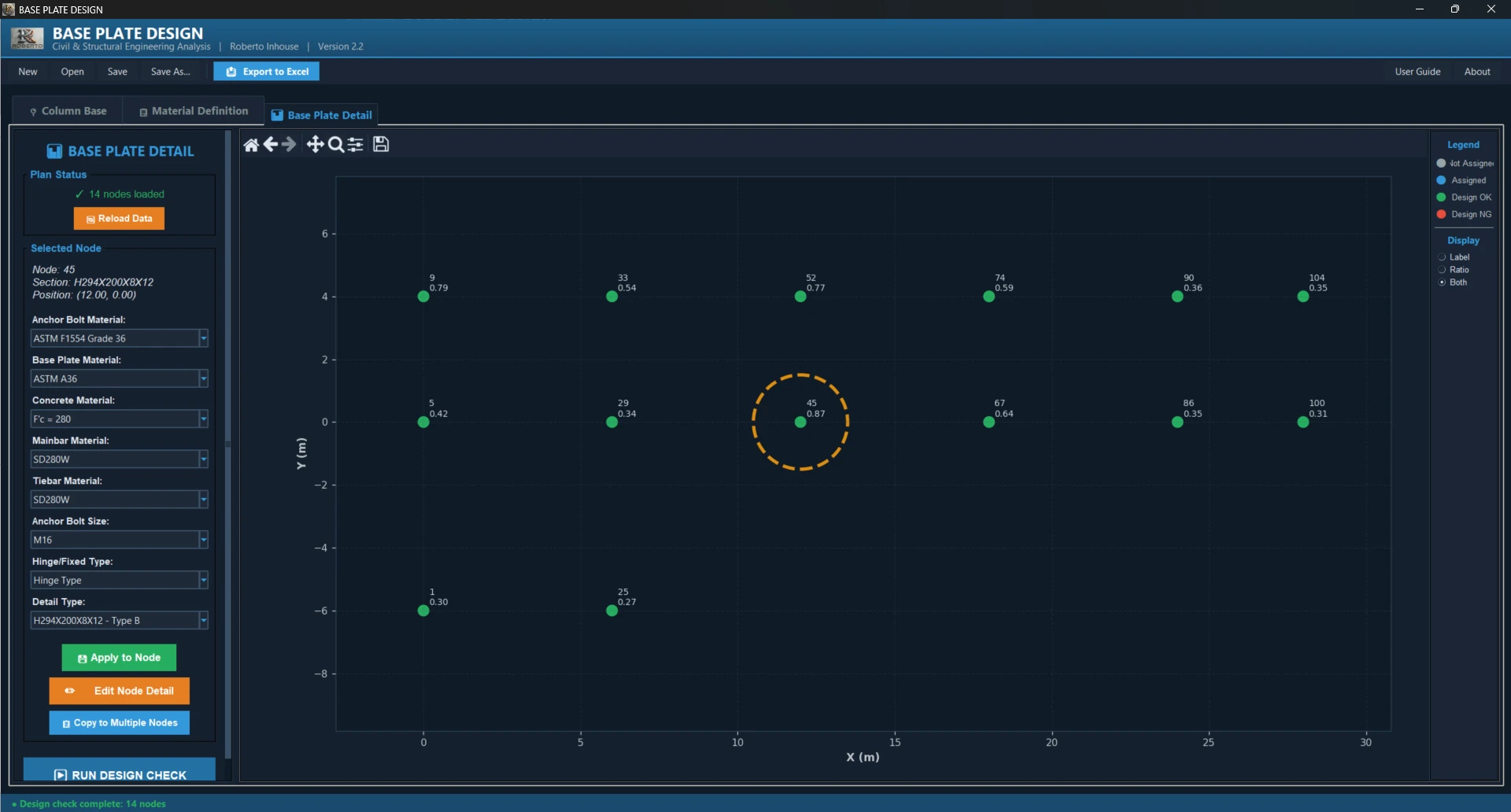

  • Visual base-plate plan view, colour-coded <b>green (OK) / red (NG)</b> per node

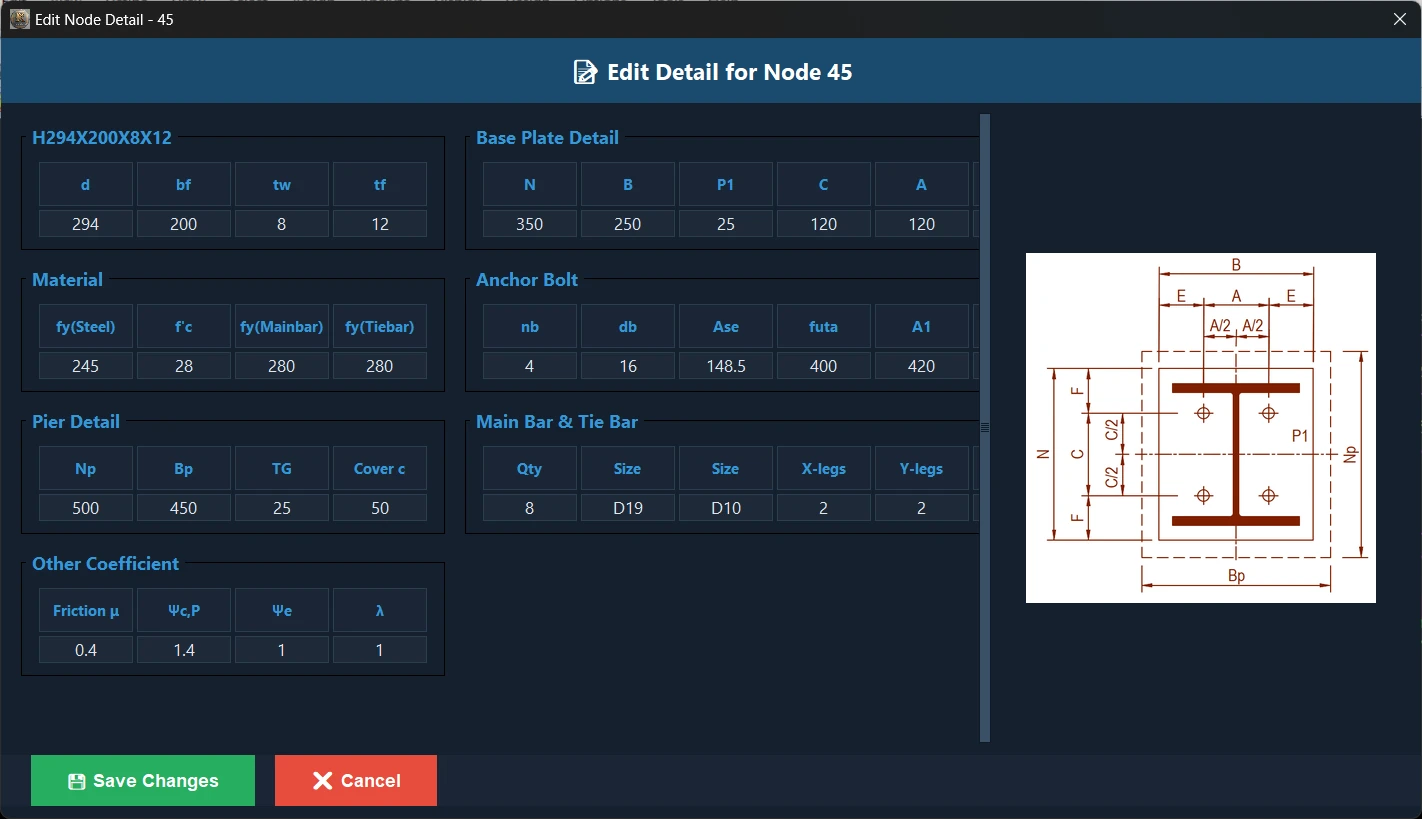

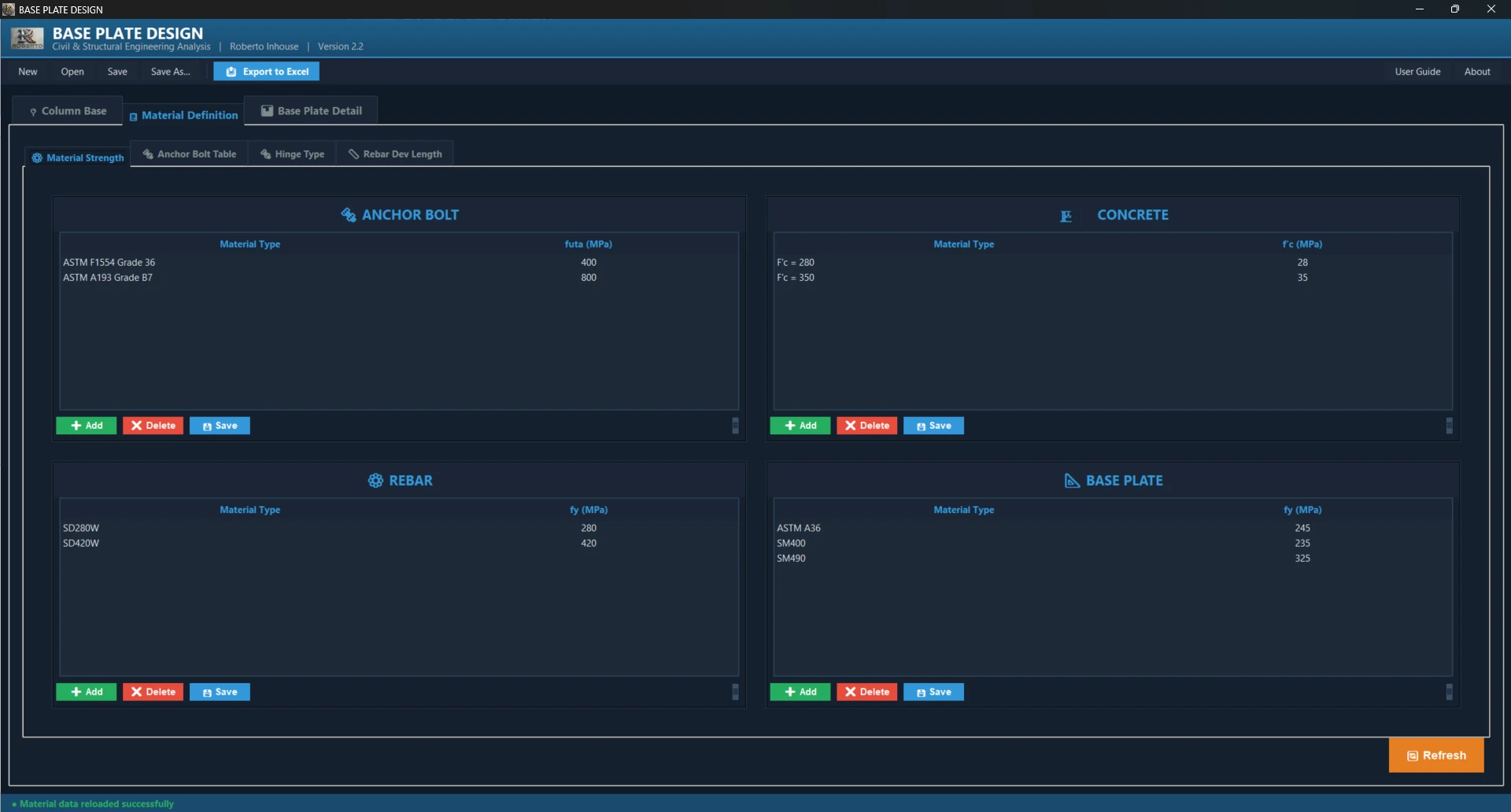

  • Editable material, anchor-bolt and hinge-type reference tables

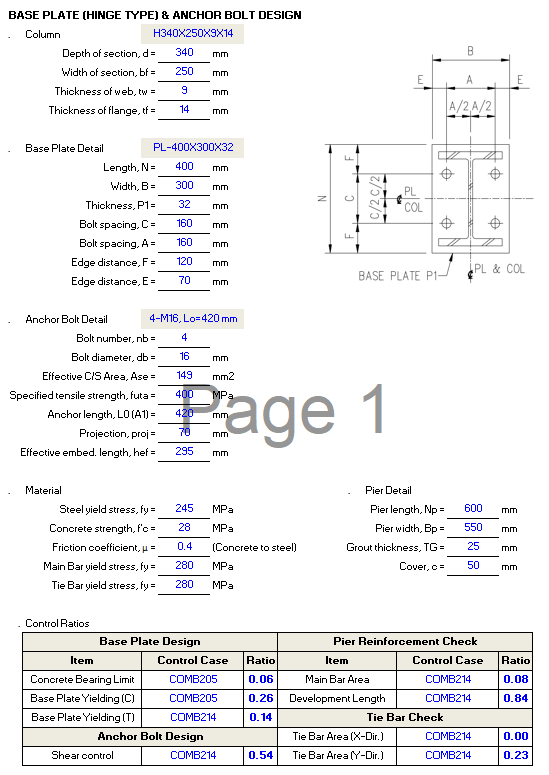

  • Per-node calculation report export (Calculation Report.xlsx)
  • Save/open project (.json) — recheck later without SAP2000 running

System requirements

Windows / SAP2000
